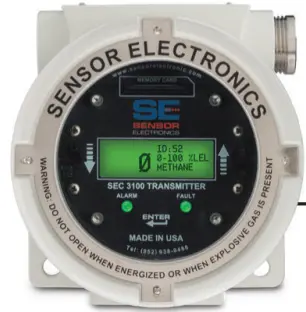

SEC 3100 Universal Transmitter & 3100 DIN Controller

Click image to enlarge

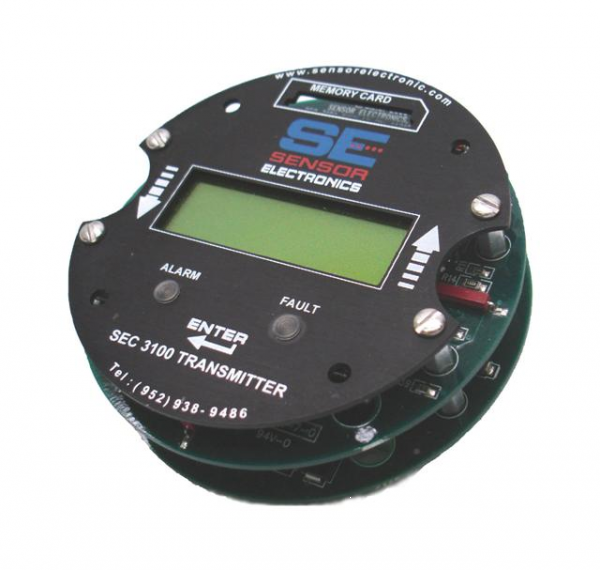

The SEC 3100 Universal Transmitter and SEC 3100 DIN Controller provides interface capabilities for the SEC 3000 Gas Detector and the SEC Millenium Infrared Gas Detectors. An optional IS barrier allows "hot" sensor replacement in rated locations. This allows the user to install pre-calibrated/pre-configured sensor boards with out removing unit power while maintaining EX rating. Removable circuit board stack and detachable connectors facilitate field-wiring installation.

Features

  • Explosion Proof and Low Cost
  • Back lit LCD display
  • Plug and Play toxic, oxygen and combustible gas sensors
  • Self Check system
  • Alarm and Fault Relays
  • Non-intrusive configuration and calibration
  • Non Explosion Proof
  • DIN Rail or Panel Mounted Controller
  • 4-20 mA output

 *Please select the quantity for each item you wish to order and click the 'Add To Cart' button below.


Petrochemical Refineries, Compost Facilities, Semi-Conductor Industry, Mining, Pulp and Paper Mills, Oil Rig Platforms, Buildings, Automotive Industry, Engine Test Rooms, LNG & LPG Facilities, Sewage Industry, Water Treatment Plants, Parking Garages, Chemical Industry , Nuclear Industry, Fertilizer Industry, Tunnels, Medical Facilities

SEC 3100 Universal Transmitter Specifications

Detection Method:

  • Toxic Gases – Electrochemical
  • Combustible – Infrared

Gas Sensor Compatibility:

  • SEC 3000 Toxic Gas Detector & SEC Millenium

Operating Voltage:

  • 18-32 VDC

Operating Current (No Sensor):

  • 125 mA Max @ 24 VDC

Power Consumption (SEC 2000 DIN and Sensor):

  • Toxic Gases and Oxygen (SEC 3000) – 4W Max
  • Combustible & CO2 (SEC Millenium) – 9W Max

Output (Digital):

  • RS-485 LAN isolated

Output (Analog):

  • 4-20 mA (source type), max. 1000 ohm load at 24 VDC supply voltage

Display:

  • Back Lighted LCD
  • LEDs for relay status

Humidity:

  • 0-99% RH (Non-Condensing)

Temperature Rating:

  • -40º to + 60º C

Housing Construction:

  • Epoxy Coated Aluminum

Certification:

  • CSA/NRTL
  • Class 1, Div 1, Groups B, C, D T5
  • IECEx: Ex d IIB + H2 T5 Gb

Housing Dimensions:

  • 5.25 (W) x 5.30(L) x 4.95 (H) inches
  • {131(W) x 132 (L) x 124 (H) mm}

Weight:

  • Approximately 6 lbs. {2.8 Kg.}

Partial Gas List:

  • Oxygen (O2)
  • Carbon Monoxide (CO)
  • Hydrogen (H2)
  • Germane (GeH4)
  • Ammonia (NH3)
  • Silane (SiH4)
  • Nitric Oxide (NO)
  • Phosphine (PH3)
  • Bromine (Br2)
  • Sulfur Dioxide (SO2)
  • Fluorine (F2)
  • Nitrogen Dioxide (NO2)
  • Arsine (AsH3)
  • Chlorine Dioxide (ClO2)
  • Ozone (O3)
  • Hydrogen Sulfide (H2S)
  • Chlorine (Cl2)
  • Hydrogen Fluoride (HF)
  • Phosgene (COCl2)
  • Hydrogen Chloride (HCL)
  • Diborance (B2H6)
  • Hydrogen Cyanide (HCN)
  • Formaldehyde (HCHO)
  • Hydrogen Selenide (H2Se)
  • Ethylene Oxide (ETO)
  • Hydrogen Peroxide(H2O2)
  • Carbon Dioxide (CO2)
  • Combustible (HC)

----------------------------------------------------------------------------------------

SEC 3100 DIN Controller Specifications

Detection Method:

  • Toxic Gases – Electrochemical
  • Combustible – Infrared

Gas Sensor Compatibility:

  • SEC 3000 Toxic Gas Detector & SEC Millenium

Operating Voltage:

  • 18-32 VDC

Operating Current (No Sensor):

  • 125 mA Max @ 24 VDC

Power Consumption (SEC 3100 and Sensor):

  • Toxic Gases and Oxygen (SEC 3000) – 4W Max
  • Combustible & CO2 (SEC Millenium) – 9W Max

Output (Digital):

  • RS-485 LAN isolated

Output (Analog):

  • 4-20 mA (source type), max. 1000 ohm load at 24 VDC supply voltage

Display:

  • Back Lit LCD
  • LEDs for alarm/relay status

Humidity:

  • 0-99% RH (Non-Condensing)

Temperature Rating:

  • -40º to + 70º C

Housing Construction:

  • ABS Plastic

Certification:

  • CSA/NRTL Pending

Housing Dimensions:

  • 3.54 (W) x 4.17(L) x 2.28 (H) inches
  • {90(W) x 106 (L) x 58(H) mm}

Weight:

  • Approximately 1 lbs. {0.9 Kg.}

Partial Gas List:

  • Oxygen (O2)
  • Carbon Monoxide (CO)
  • Hydrogen (H2)
  • Germane (GeH4)
  • Ammonia (NH3)
  • Silane (SiH4)
  • Nitric Oxide (NO)
  • Phosphine (PH3)
  • Bromine (Br2)
  • Sulfur Dioxide (SO2)
  • Fluorine (F2)
  • Nitrogen Dioxide (NO2)
  • Arsine (AsH3)
  • Chlorine Dioxide (ClO2)
  • Ozone (O3)
  • Hydrogen Sulfide (H2S)
  • Chlorine (Cl2)
  • Hydrogen Fluoride (HF)
  • Phosgene (COCl2)
  • Hydrogen Chloride (HCL)
  • Diborance (B2H6)
  • Hydrogen Cyanide (HCN)
  • Formaldehyde (HCHO)
  • Hydrogen Selenide (H2Se)
  • Ethylene Oxide (ETO)
  • Hydrogen Peroxide(H2O2)
  • Carbon Dioxide (CO2)
  • Combustible (HC)
  • Methyl Mercaptan (CH4S)
  • Ethyl Mercaptan (C2H6S)
