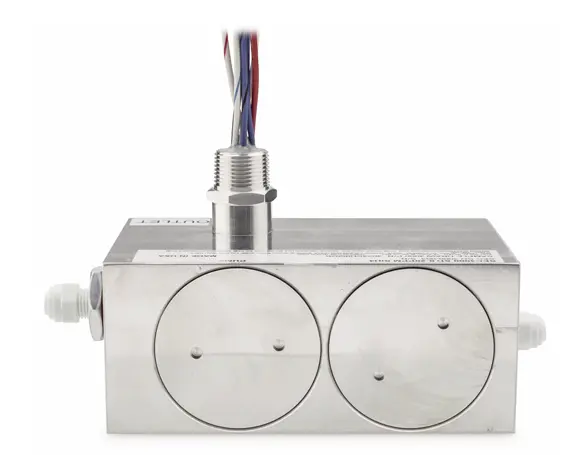

Sample Draw Explosion Proof

The SEC Sample Draw provides the ability to pull a gas sample from a remote area, confined space, chamber and measure it remotely up to 200’ distance.

The features include the following:

• Modular design of sensor allowing for easy replacement and change of sensor board or sensor module
• Two independent 4-20 mA outputs to monitor both the sensor and the pump
• Two independent data wires to be used for calibration and communication between SEC transmitters
• Can be used with the SEC 3120 Transmitters
  • The 3120 Transmitter will monitor the pump and the sensor simultaneously
  • The unit can be mounted separately from the SEC 3120 Transmitter
  • Easy flow calibration can be done by transmitter, no use of flow meter required
  • Flow rate set by ‘Cal Value’ on transmitter, pump will automatically adjust to meet flow rate
• Can be used with SEC 3100 transmitters using multiplexed data wire
• Unit will normally show sensor display unless a problem is detected with the pump
• Can use a magnet to switch from sensor display to pump display on 3100 for calibration

Contact Sensor Electronics Today

Contact Sensor Electronics today for more information on Sample Draw Explosion Proof.
