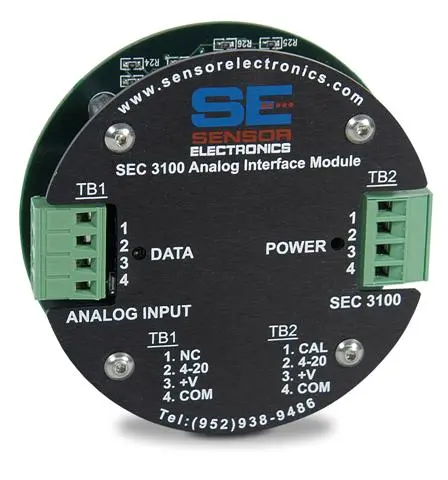

SEC 3100 Analog Interface Module (AIM)

Operating Voltage:

• 18-32 VDC

Temperature Rating:

• -40° to + 70°C

Device Variable Characters

• Device Name: 8
• Range: 4
• Unit of Measure: 4
• Calibration Value: 4 (Standard ASCII Characters)

Operating Current (No Sensor):

• 50mA @ 24VDC

Humidity:

• 0-99% RH (non-condensing)

Output (digital):

• SEC SSP (Smart Sensor Protocol)

Input (analog):

• Impedance: 200 Ω
• Max applied voltage: 32 VDC

Applications where non-Sensor Electronics 4-20mA output devices need to be included on the Modbus Network
