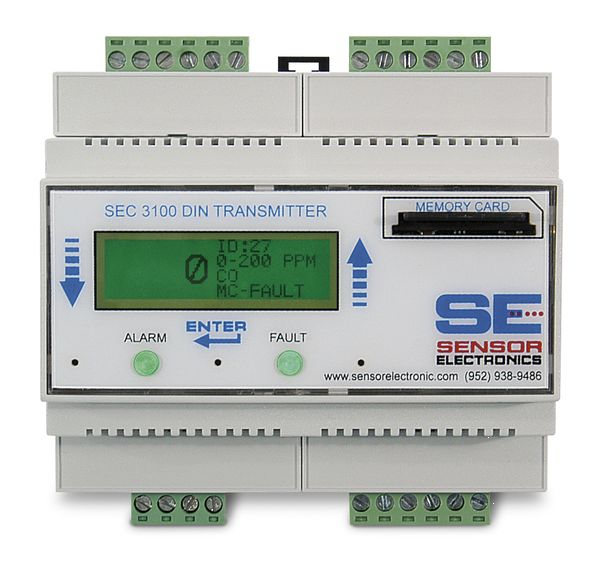

3100 DIN Controller, 3100-000-000DIN

Petrochemical Refineries, Compost Facilities, Semi-Conductor Industry, Mining, Pulp and Paper Mills, Oil Rig Platforms, Buildings, Automotive Industry, Engine Test Rooms, LNG & LPG Facilities, Sewage Industry, Water Treatment Plants, Parking Garages, Chemical Industry , Nuclear Industry, Fertilizer Industry, Tunnels, Medical Facilities

SEC 3100 Universal Transmitter Specifications

Detection Method:

• Toxic Gases – Electrochemical
• Combustible – Infrared

Gas Sensor Compatibility:

• SEC 3000 Toxic Gas Detector & SEC Millenium

Operating Voltage:

• 18-32 VDC

Operating Current (No Sensor):

• 125 mA Max @ 24 VDC

Power Consumption (SEC 2000 DIN and Sensor):

• Toxic Gases and Oxygen (SEC 3000) – 4W Max
• Combustible & CO2 (SEC Millenium) – 9W Max

Output (Digital):

• RS-485 LAN isolated

Output (Analog):

• 4-20 mA (source type), max. 1000 ohm load at 24 VDC supply voltage

Display:

• Back Lighted LCD
• LEDs for relay status

Humidity:

• 0-99% RH (Non-Condensing)

Temperature Rating:

• -40º to + 60º C

Housing Construction:

• Epoxy Coated Aluminum

Certification:

• CSA/NRTL
• Class 1, Div 1, Groups B, C, D T5
• IECEx: Ex d IIB + H2 T5 Gb

Housing Dimensions:

• 5.25 (W) x 5.30(L) x 4.95 (H) inches
• {131(W) x 132 (L) x 124 (H) mm}

Weight:

• Approximately 6 lbs. {2.8 Kg.}

Partial Gas List:

• Oxygen (O2)
• Carbon Monoxide (CO)
• Hydrogen (H2)
• Germane (GeH4)
• Ammonia (NH3)
• Silane (SiH4)
• Nitric Oxide (NO)
• Phosphine (PH3)
• Bromine (Br2)
• Sulfur Dioxide (SO2)
• Fluorine (F2)
• Nitrogen Dioxide (NO2)
• Arsine (AsH3)
• Chlorine Dioxide (ClO2)
• Ozone (O3)
• Hydrogen Sulfide (H2S)
• Chlorine (Cl2)
• Hydrogen Fluoride (HF)
• Phosgene (COCl2)
• Hydrogen Chloride (HCL)
• Diborance (B2H6)
• Hydrogen Cyanide (HCN)
• Formaldehyde (HCHO)
• Hydrogen Selenide (H2Se)
• Ethylene Oxide (ETO)
• Hydrogen Peroxide(H2O2)
• Carbon Dioxide (CO2)
• Combustible (HC)

----------------------------------------------------------------------------------------

SEC 3100 DIN Controller Specifications

Detection Method:

• Toxic Gases – Electrochemical
• Combustible – Infrared

Gas Sensor Compatibility:

• SEC 3000 Toxic Gas Detector & SEC Millenium

Operating Voltage:

• 18-32 VDC

Operating Current (No Sensor):

• 125 mA Max @ 24 VDC

Power Consumption (SEC 3100 and Sensor):

• Toxic Gases and Oxygen (SEC 3000) – 4W Max
• Combustible & CO2 (SEC Millenium) – 9W Max

Output (Digital):

• RS-485 LAN isolated

Output (Analog):

• 4-20 mA (source type), max. 1000 ohm load at 24 VDC supply voltage

Display:

• Back Lit LCD
• LEDs for alarm/relay status

Humidity:

• 0-99% RH (Non-Condensing)

Temperature Rating:

• -40º to + 70º C

Housing Construction:

• ABS Plastic

Certification:

• CSA/NRTL Pending

Housing Dimensions:

• 3.54 (W) x 4.17(L) x 2.28 (H) inches
• {90(W) x 106 (L) x 58(H) mm}

Weight:

• Approximately 1 lbs. {0.9 Kg.}

Partial Gas List:

• Oxygen (O2)
• Carbon Monoxide (CO)
• Hydrogen (H2)
• Germane (GeH4)
• Ammonia (NH3)
• Silane (SiH4)
• Nitric Oxide (NO)
• Phosphine (PH3)
• Bromine (Br2)
• Sulfur Dioxide (SO2)
• Fluorine (F2)
• Nitrogen Dioxide (NO2)
• Arsine (AsH3)
• Chlorine Dioxide (ClO2)
• Ozone (O3)
• Hydrogen Sulfide (H2S)
• Chlorine (Cl2)
• Hydrogen Fluoride (HF)
• Phosgene (COCl2)
• Hydrogen Chloride (HCL)
• Diborance (B2H6)
• Hydrogen Cyanide (HCN)
• Formaldehyde (HCHO)
• Hydrogen Selenide (H2Se)
• Ethylene Oxide (ETO)
• Hydrogen Peroxide(H2O2)
• Carbon Dioxide (CO2)
• Combustible (HC)
• Methyl Mercaptan (CH4S)
• Ethyl Mercaptan (C2H6S)
