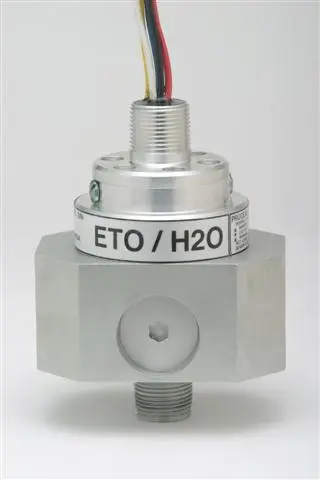

SEC Signature DIR Dual Gas Analyzer, #D011000G020300G

Models:

• EtO/H2O
• Hydrocarbon/H2O
• CO2/Hydrocarbon

Range (Adjustable):

• EtO: 0-2000 mg/liter
• Hydrocarbon: 0-100% VOL
• CO2: 0-100% VOL
• H20: 0-100 mg/liter
• H2O: 0-300 mg/liter

Construction:

• Anodized aluminum and sapphire

Mechanical Connection:

• ¾” NPT

Weight:

• 3 lbs.

Accuracy:

• ± 5% of reading or ± 3% full scare
• (Whichever is greater)

Repeatability:

• ± 2%

Operating Voltage:

• 18-32 VDC

Max. Power Consumption:

• 35 watts

Current Draw (@24VDC):

• 1.0A (average)

Analog Outputs:

• Ch0: 0-20mA (sourced)
• Ch1: 0-20mA (sourced)

Digital Output:

• Interactive P.C. link (White Wire)

Input Compensation Channel:

• 4-20mA (400Ω)

Wire Connections:

• Red wire (+24 VDC)
• Black wire (D.C. common)
• Blue wire (4-20mA output signal Ch 0)
• Yellow wire (4-20mA output signal Ch 1)
• White wire (digital interface)
• Brown wire (Compensation input)

Rating:

• Class 1, Div 1, Groups B,C,D
• (-40° to + 75° C)

Humidity:

• 0-99% (Non-condensing)

Operating Temperature:

• 0-75° C

Operating Pressure:

• 1-55 PSIA

Installation Category:

• Cat. 1, Pollution Degree 2

Dimensions:

• 5.5” (H) x 4.25” (W) (inches)

• Medical
• Pharmaceutical
• Petrochemical
