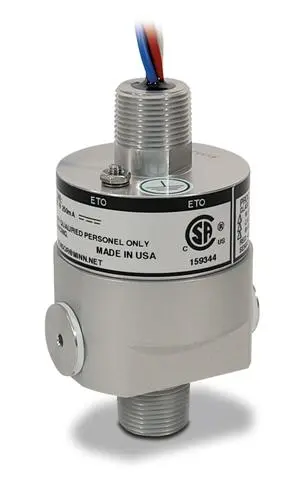

SEC Signature Process Gas Analyzer, #SIGETO-1420597

Part Number:

• EtO:  SIGETO-1420597
• CO2: SIGCO2-1420848
• Hydrocarbon: SIGHC-1421014

Range (adjustable):

• EtO: 0-2000 mg/liter
• CO2: 0-100% VOL
• Hydrocarbon:  0-100% VOL

Output (analog):

• 4-20mA (Source Type)

Digital Output:

• Interactive P.C. link

Accuracy:

• ± 5% of reading or ± 3% full scale (whichever is greater)

Repeatability:

• ±2%

Construction:

• Anodized Aluminum and Sapphire

Mechanical Connection:

• ¾” NPT

Operating Range:

• 18 to 32 VDC

Power Consumption:

• 6 Watts Max

Max Current Draw (at 24VDC):

• Average: 250mA   Peak:  450mA

Wire Connections:

• Red wire (+ 24 VDC)
• Black wire (D.C. common)
• Blue wire (4-20 mA output signal)
• White wire (Calibration/digital interface)

Approvals:

• CSA, CE

Rating:

• Class 1, Div 1, Groups B, C, D (-40º to 50ºC)

Humidity:

• 0-99% (Non-condensing)

Operating Temperature:

• 0-65º C

Operating Pressure:

• 1 PSIA – 55 PSIA

Installation Category:

• Cat 1, Pollution Degree 2

Weight:

• 2 lbs (0.92 Kg.)

• Medical
• Laboratories
• Clean Room
• Petrochemical
